Device Spec



---

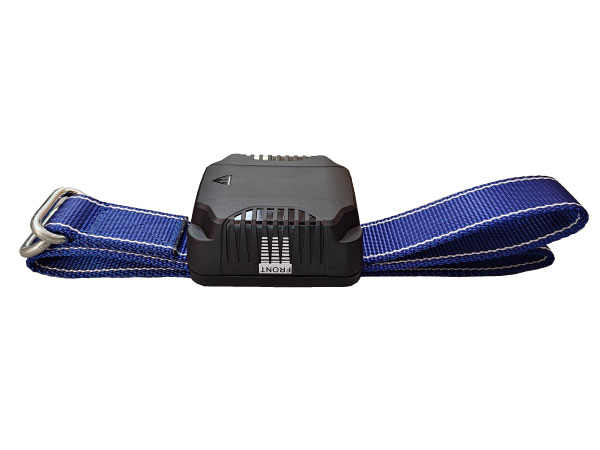

Ushimiru Collar

The "Ushimiru Collar" is a durable LoRa/GPS device designed to withstand the vigorous movements of grazing cows. The battery life is approximately five years with a transmission interval of 30 minutes, though this may vary depending on usage conditions.

Specification	Parameter
LoRa chipset	Semtech LoRa  Chip
LoRa antenna	LoRa internal antenna
LoRa band	923-925MHz or 865-867MHz
MCU	STM32
BLE	Nordic solution
BLE antenna	BLE Internal antenna
GPS	GPS, Glonass
GPS antenna	Patch antenna
NFC	NFC tag
Battery	ER34615, 19Ah/3.6V
Buttons	1 button for power/function
LED	1 LED RGB
Weight	290g incl battery
Size	W 84.5 x L 130.8 x D 44.0 mm
Operating temp	-20℃ ~ +60℃
IP	IP69K before replacing the battery
Certificate	FCC, CE, TELEC



The USHIMIRU Collar Type 2 EL Version, designed to operate on the SONY ELTRES network, is scheduled for release in Fall 2025. This model does not require users to install their own gateways.





---

Kerlink Wirnet iStation 923

The "Wirnet iStation 923" is an outdoor LoRaWAN gateway, featuring ease of installation, wide coverage, and user-friendly operation. It supports up to 8-channel uplinks and is IP67 compliant, ensuring durability and reliability in various environmental conditions.





Wirnet iStation 923 Specifications

*LBT (Listen Before Talk) Supported
*Built-in SAW Filter
*Rx Sensitivity:-141 dBm (SF12)
*TX Power: 5 ~ 27 dBm
*Operating Temperature: -40 ~ +60 ℃
*Operating Humidity: Up to 95%
*Dimensions: 265×165×100mm
*Weight:*1.4kg (including mounting kit)
*Spectrum Analysis Compliant
*Built-in Backup Power: Ensures safe shutdown during power outages
*Dust and Waterproof:IP67
*Housing Materials:Aluminum (back), Polycarbonate (front), Stainless Steel (mounting kit)
*CPU: ARM Cortex A9
*DDRAM: 256MB
*Storage: 8GB eMMC (6GB available for user)
*OS: KerOS (based on Kernel 4.14 Embedded Linux and Yocto 2.4)
*Supported Development Languages: Python2, C/C++, Shell
*4G Support: Standard SIM

---

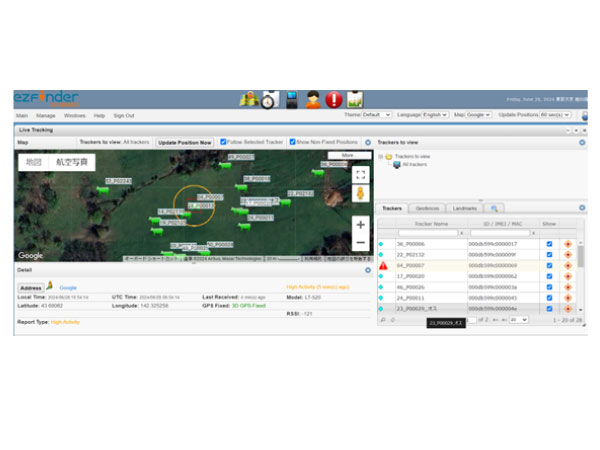

ezFinder BUSINESS Cattle

ezFinder BUSINESS Cattle displays the precise location of cattle on a map and sends alerts when estrus is detected. This cloud application also mathematically displays the time spent on activities such as lying down, grazing, ruminating, and walking. You can create geofences to prevent cows from escaping. This feature helps in maintaining the herd within designated areas by sending alerts if any cow crosses the virtual boundaries.
